Dishwasher Installation

Installation includes
  1. Review installation with customer at start of work.
  2. Remove packaging and inspect unit.
  3. Prepare appropriate drilling if side-mounting is necessary and possible.
  4. Install of the new dishwasher into opening and hook up to existing plumbing and electrical.
  5. Ensure dishwasher is properly grounded.
  6. Test to ensure proper operation.
If dishwasher exist:
  1. Disconnect existing dishwasher.
  2. Supply and install of new dishwasher supply line.
For new dishwasher:
  1. Install shut off valve, supply line and any other minor plumbing and electrical as required up to existing branch wiring and plumbing.
Installation does not include
  1. Disposal of old unit and packaging unless haul away via installer has been purchased.
  2. Supply and install of a new shut off valve if dishwasher exist.
  3. Routing water and drain lines through adjacent cabinet(s) other than the sink base.
  4. Pick-up and delivery of the dishwasher unless delivery via installer has been purchased.
  5. Upgrading of electrical services, structural modifications or removal of cabinetry to accommodate new appliances.
  6. Note: Replacement of circuit breakers (requires a licensed electrician).

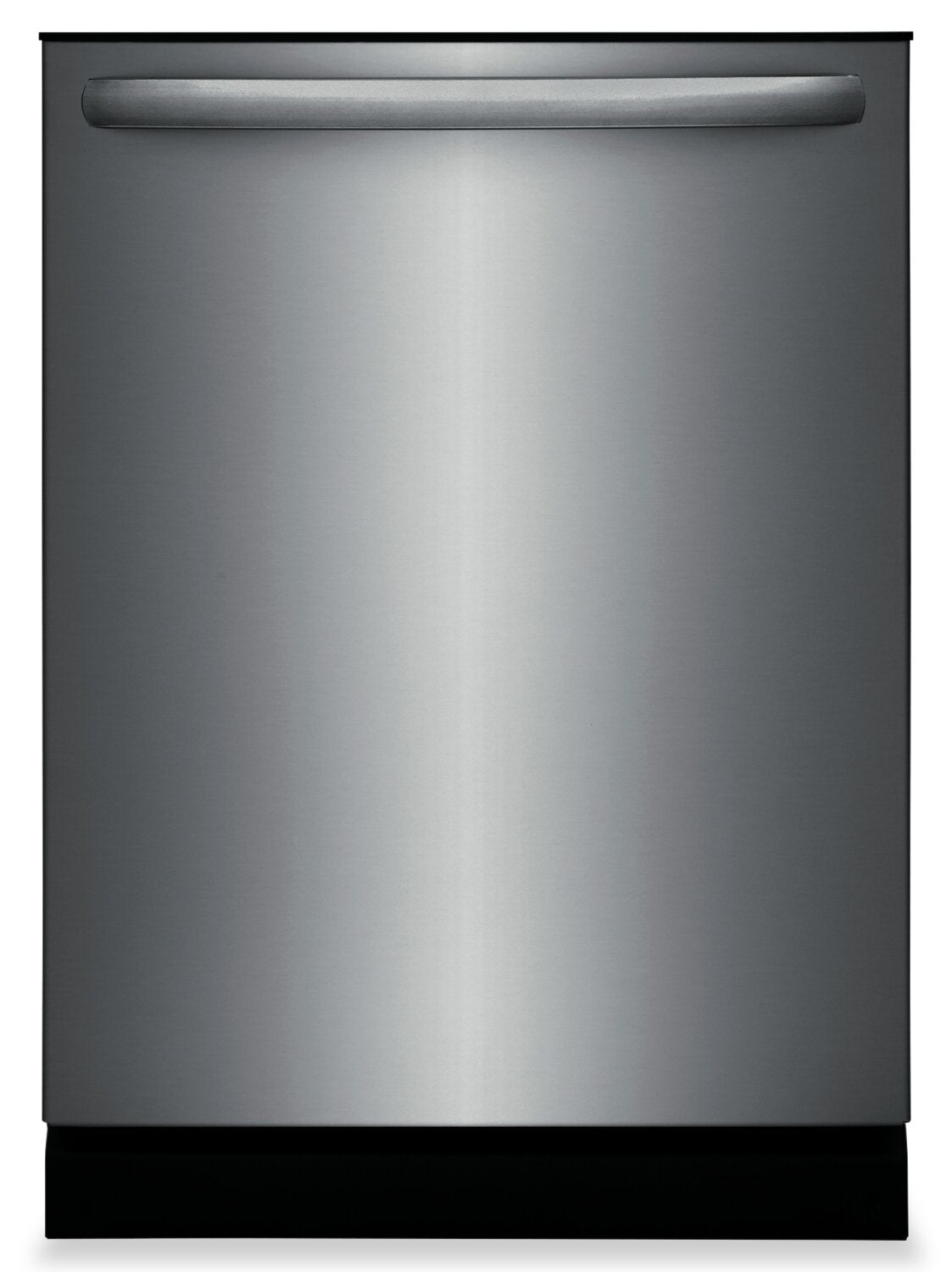

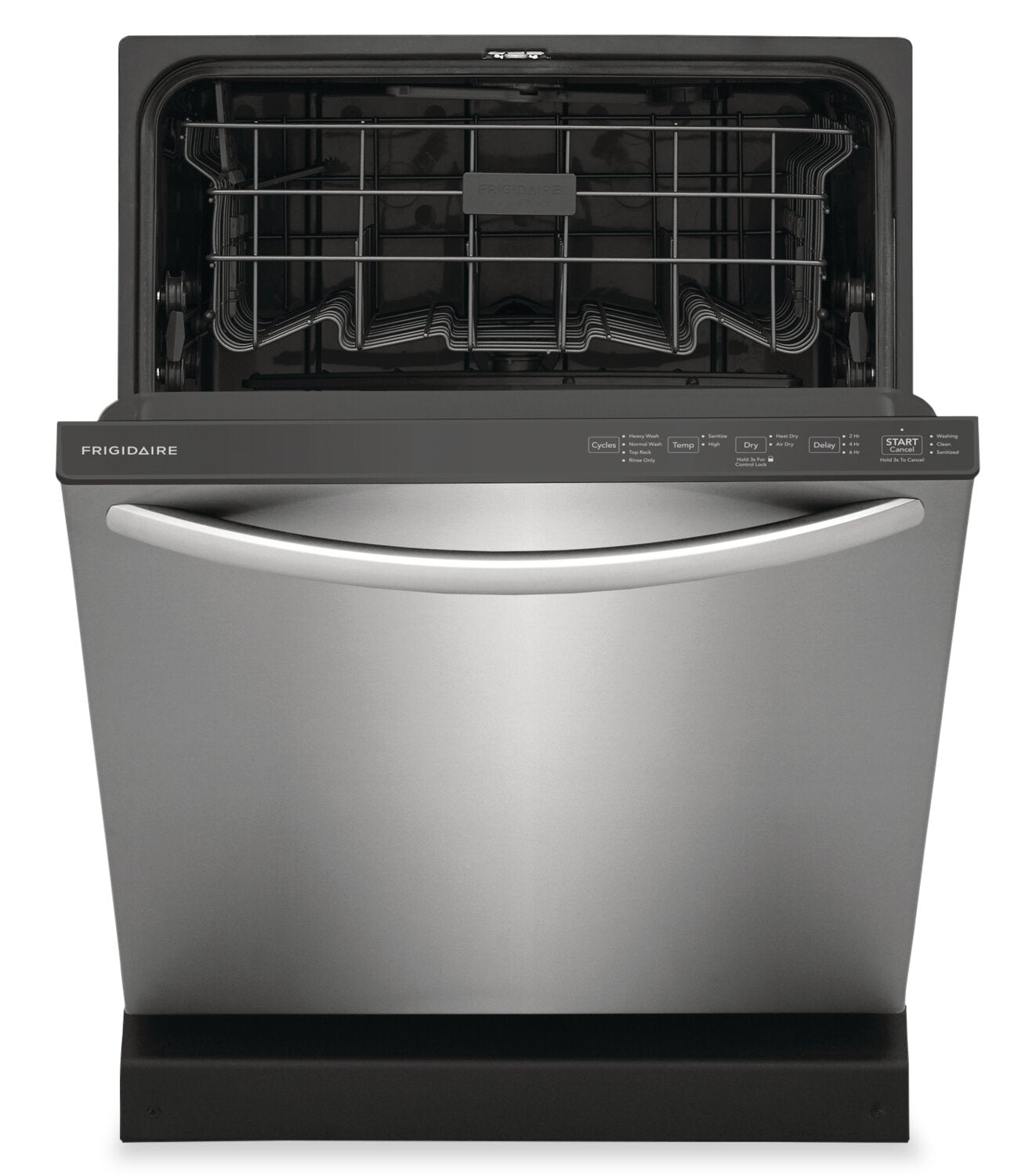

Frigidaire 24" Top-Control Built-In Dishwasher - FDPH4316AS

Dimensions: 24" w x 33.5" h x 25" d
$595.00 Was $699.97
What's included?
Sku: FDPH431S
Wishlist (0)
Maximum quantity available reached.

Experience complete kitchen cleanliness with this Frigidaire dishwasher. Featuring three spray arms, this dishwasher ensures excellent water coverage on your dishes for more thorough results. Then, MaxDry™ uses high heat to get dishes dry and ready for the table faster. This dishwasher is certified by the National Sanitation Foundation (NSF®) to remove up to 99.9% of common household germs during the sanitize cycle. Plus, it has achieved the ENERGY STAR® designation for efficiency.

Product Dimensions: Width:24" Height:33.5" Depth:25"

Unique Features:

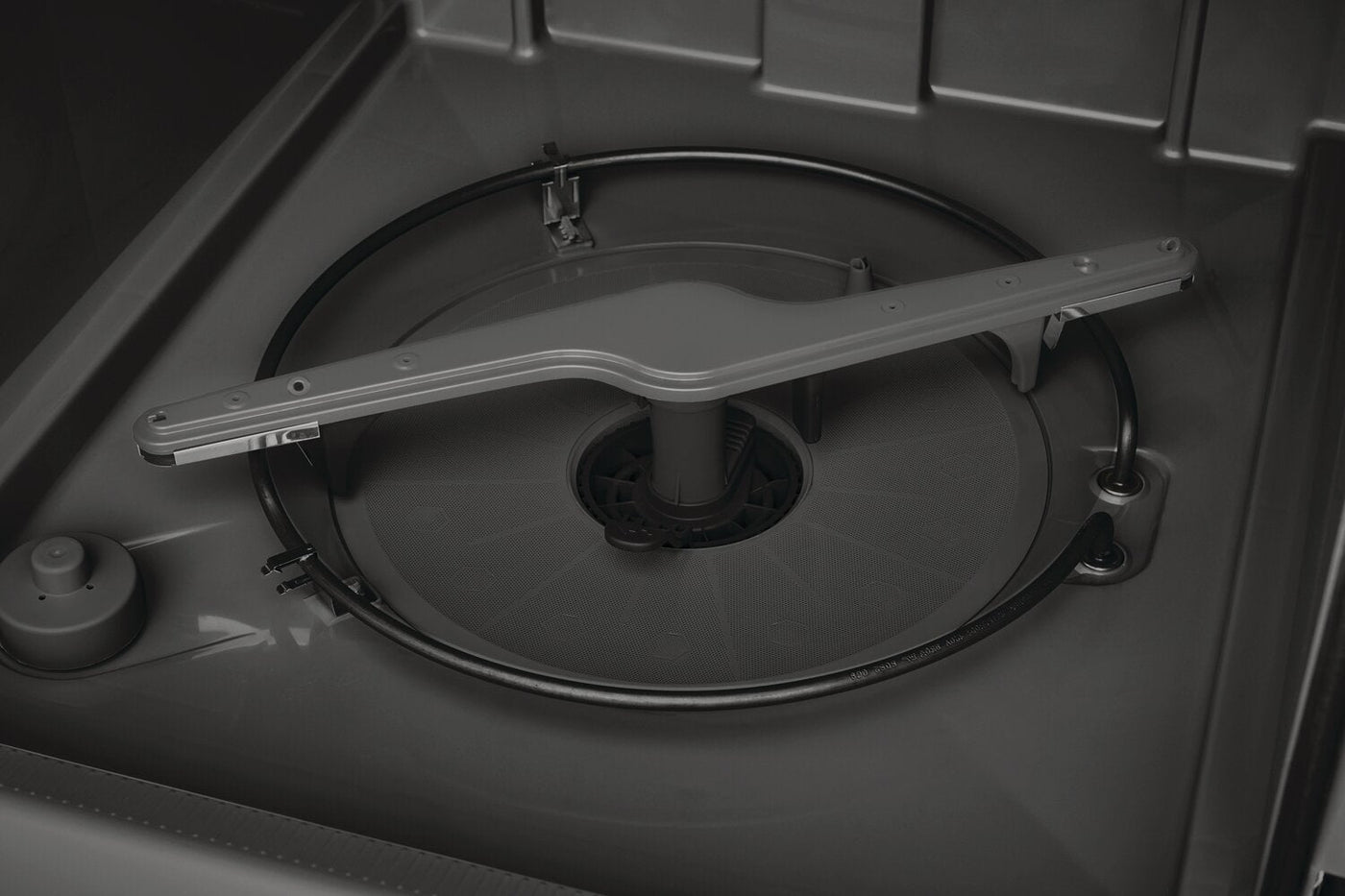

Triple the Cleaning Power:
Give your dishes a more effective clean with three spray arms, which achieve better water coverage during the cleaning cycle.

MaxDry:
The MaxDry option raises the temperature to deliver better results and reduce the need for towel drying.

DishSense® Sensor Technology:
Sensor technology adjusts cleaning performance based on the soil level of your dishes.

Sanitize Option:
Remove 99.9% of common household bacteria with the NSF-Certified Sanitize option.

Quick 60-Minute Wash:
Quickly get your dishes table-ready using the 60-minute wash cycle.

Stay-Put Door:
Reduce door slamming and dishes clinking with the stay-put door that allows you to open the door at any angle to load and unload dishes.

Energy Star Certified:
Energy Star certified models offer the benefits of efficiency without sacrificing features, performance, style or convenience.

Certification: Energy Star Certified, cUL Listed, NSF Certified

Dishwasher Capacity: 14 Place Settings

Dishwashers Type: Built-In

Filtration Type: Removable Plastic Filter

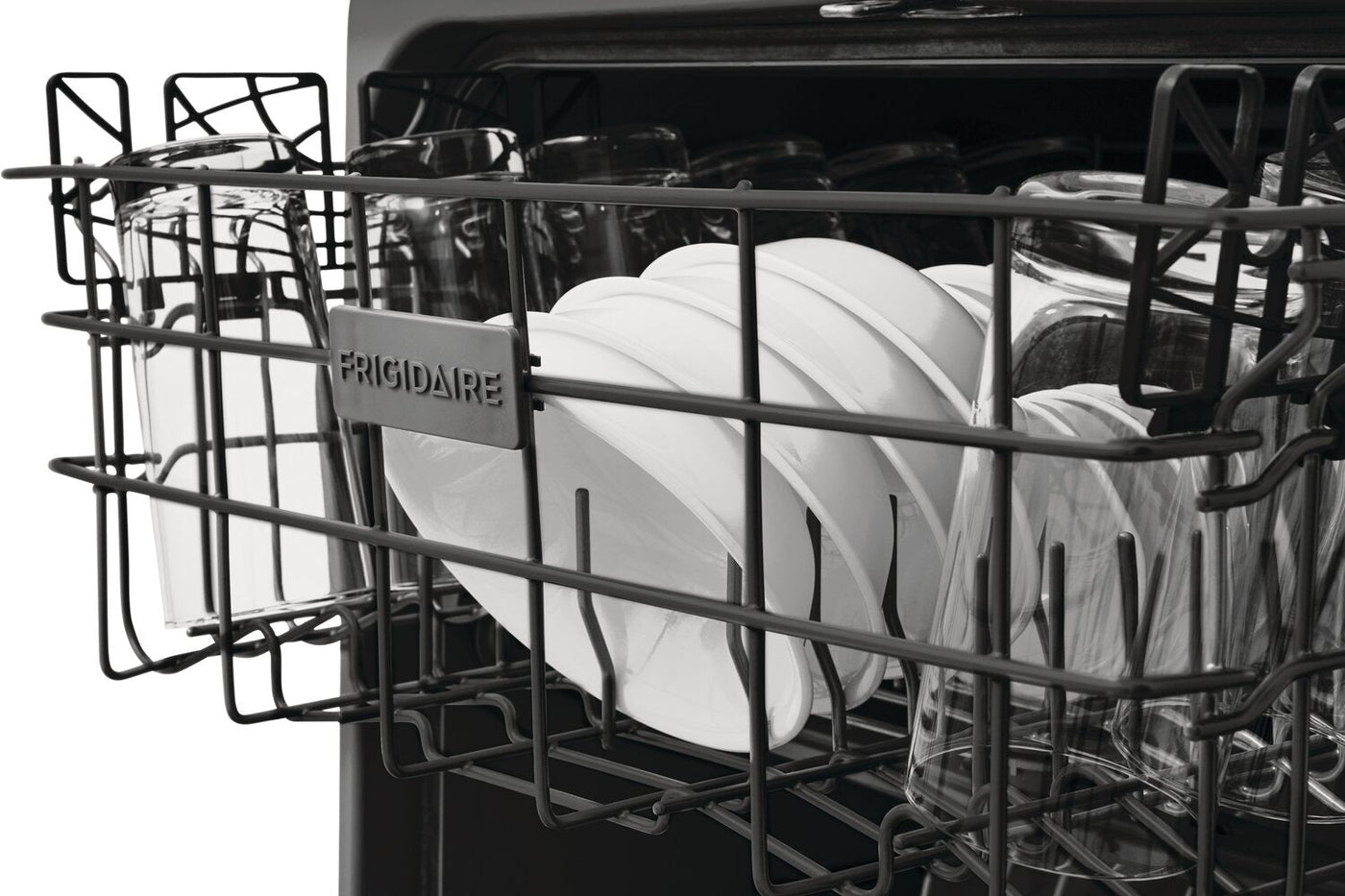

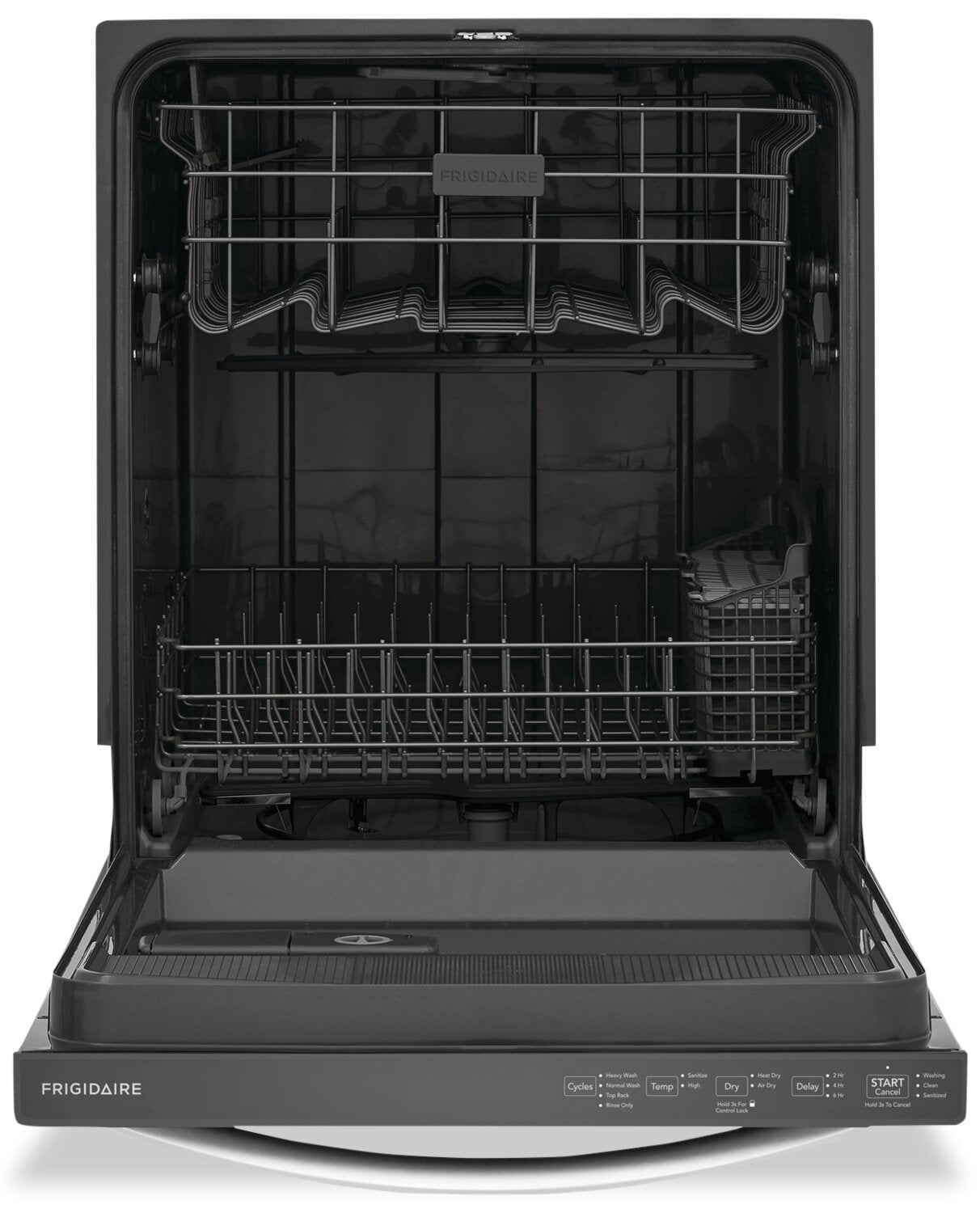

Racks: Upper Rack, Lower Rack

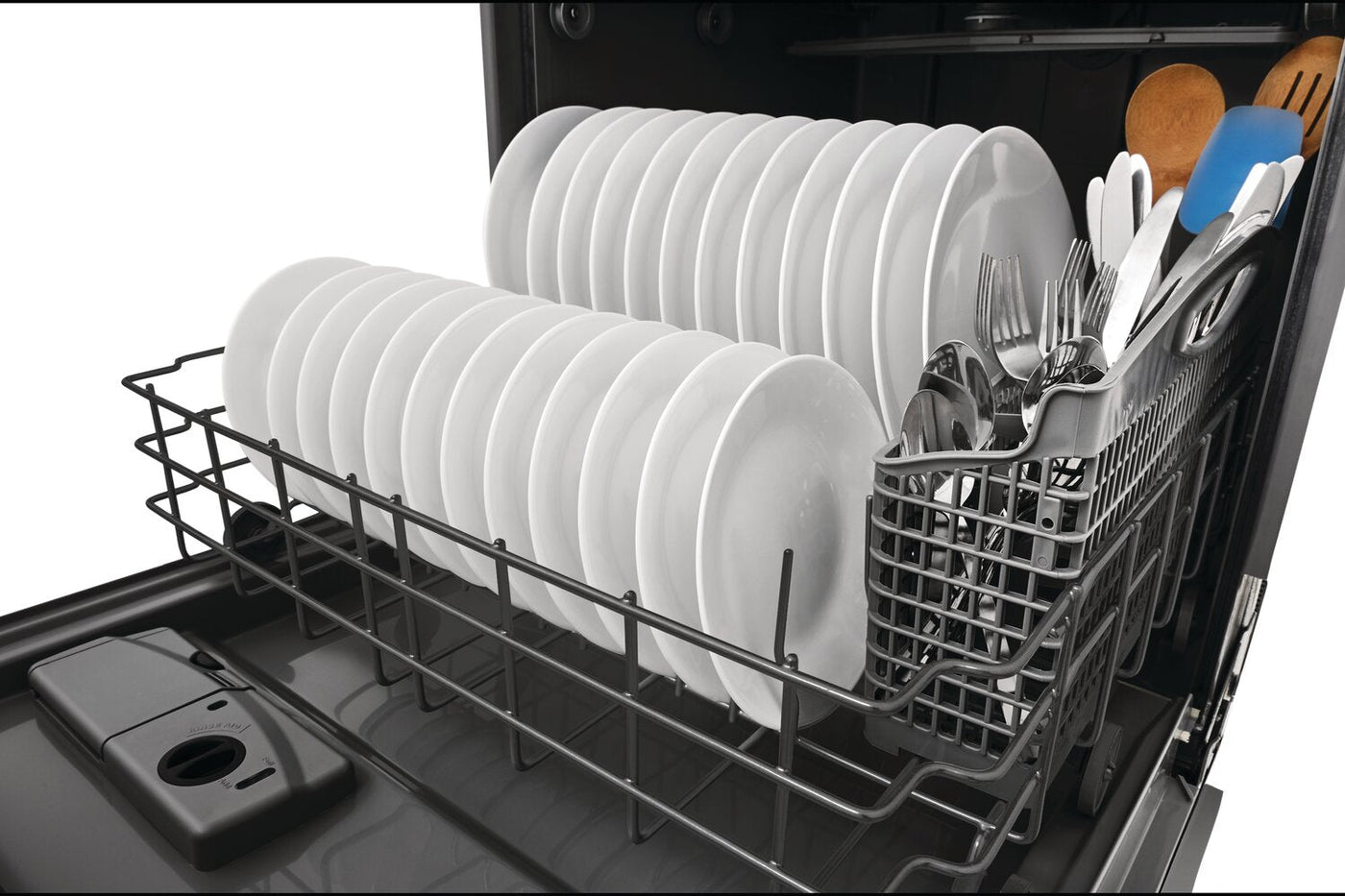

Silverware Basket: Yes

Tub Type: Plastic Tall Tub

Wash Cycles: Energy Saver, Heavy, Normal, Number of Cycles, Quick

Wash Options: Air Dry, Dry - Heat, Dry - Max, Drying System, Heated Dry, High Temperature, Start/Cancel, Washing Temperature - High, Washing Temperature - Sanitize

Wash System: Direct Feed

Appliance Features: Sanitize, Top Control

Care Instructions: Please refer to your Owner's Manual

Depth Door Open: 49.25"

Energy Consumption: 240 kWh/year

Finish: Stainless Steel

Levelling System: 4 Levelling Legs

Additional Details:

Please note that the actual colour may vary slightly from the colours shown on the screen due to different device monitors.
