Bosch 500 Series 36" Canopy Range Hood - HCB56651UC

Dimensions: 36" w x 27.2" h x 19.7" d
$2,299.00 Was $2,649.97
Sku: HCB56651U
Wishlist (0)
Maximum quantity available reached.

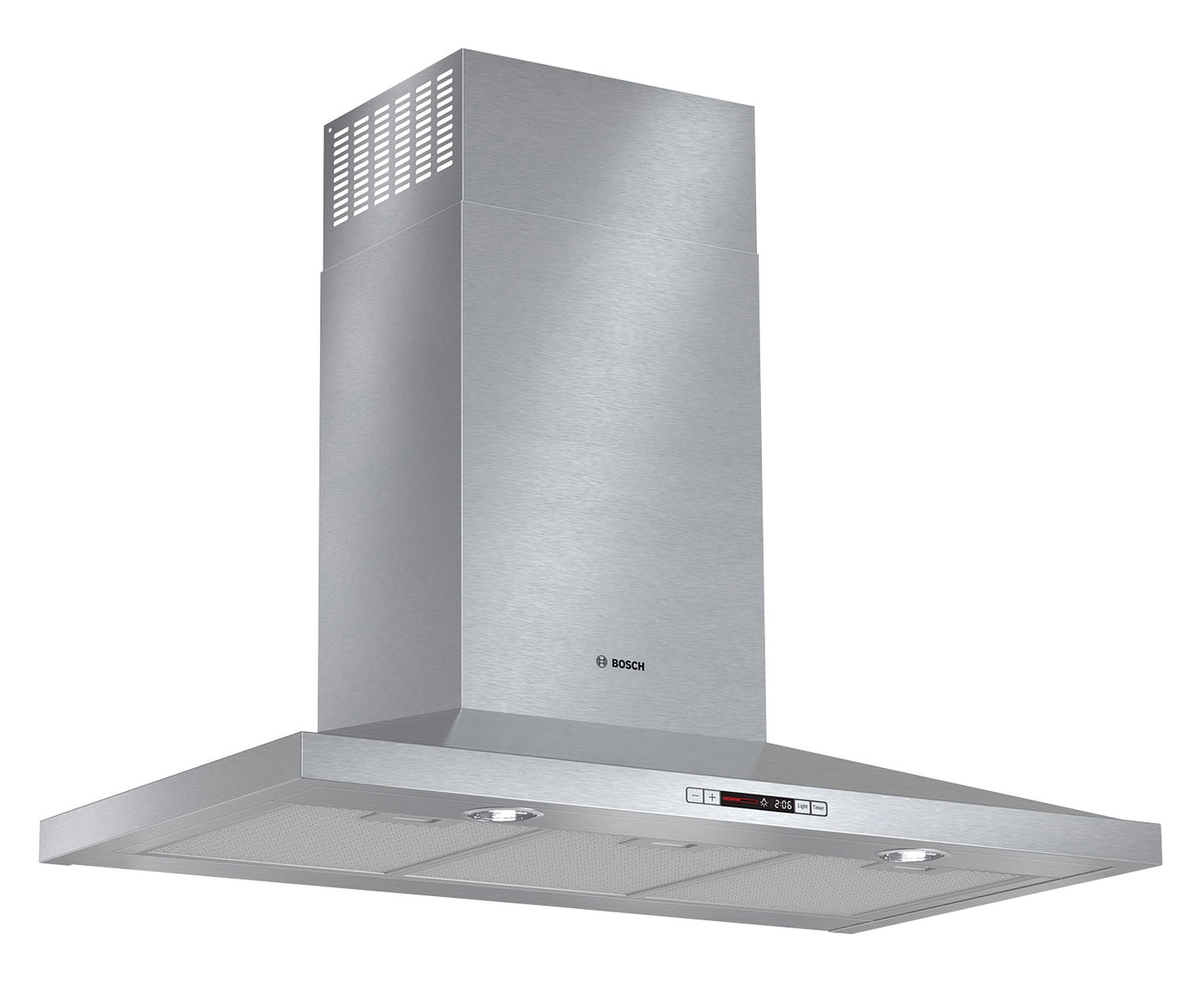

This Bosch 500 series box canopy chimney hood will not only clear away smoke and steam from your stove, but it will also add a sleek and contemporary touch to your kitchen. With an LCD display and stainless steel design, this chimney hood is both modern and easy to use. The filters are dishwasher-safe, ensuring even greater convenience. Capable of blowing 600 cubic feet per minute (CFM), this chimney hood makes cooking more comfortable.

Product Dimensions: Width:36" Height:27.2" Depth:19.7"

Key Features:

  • Stainless Steel Design
  • 600 CFM Centrifugal Integrated Blower
  • Four-Speed Touch Controls with LCD Display
  • Dishwasher-Safe Aluminum Mesh Filters

Stainless Steel Design
The stainless steel design makes this range hood both durable and modern-looking.

600 CFM Centrifugal Integrated Blower Blower
The centrifugal integrated blower can blow away steam and smoke at 600 cubic feet per minute, ensuring your cooking area remains comfortable to use.

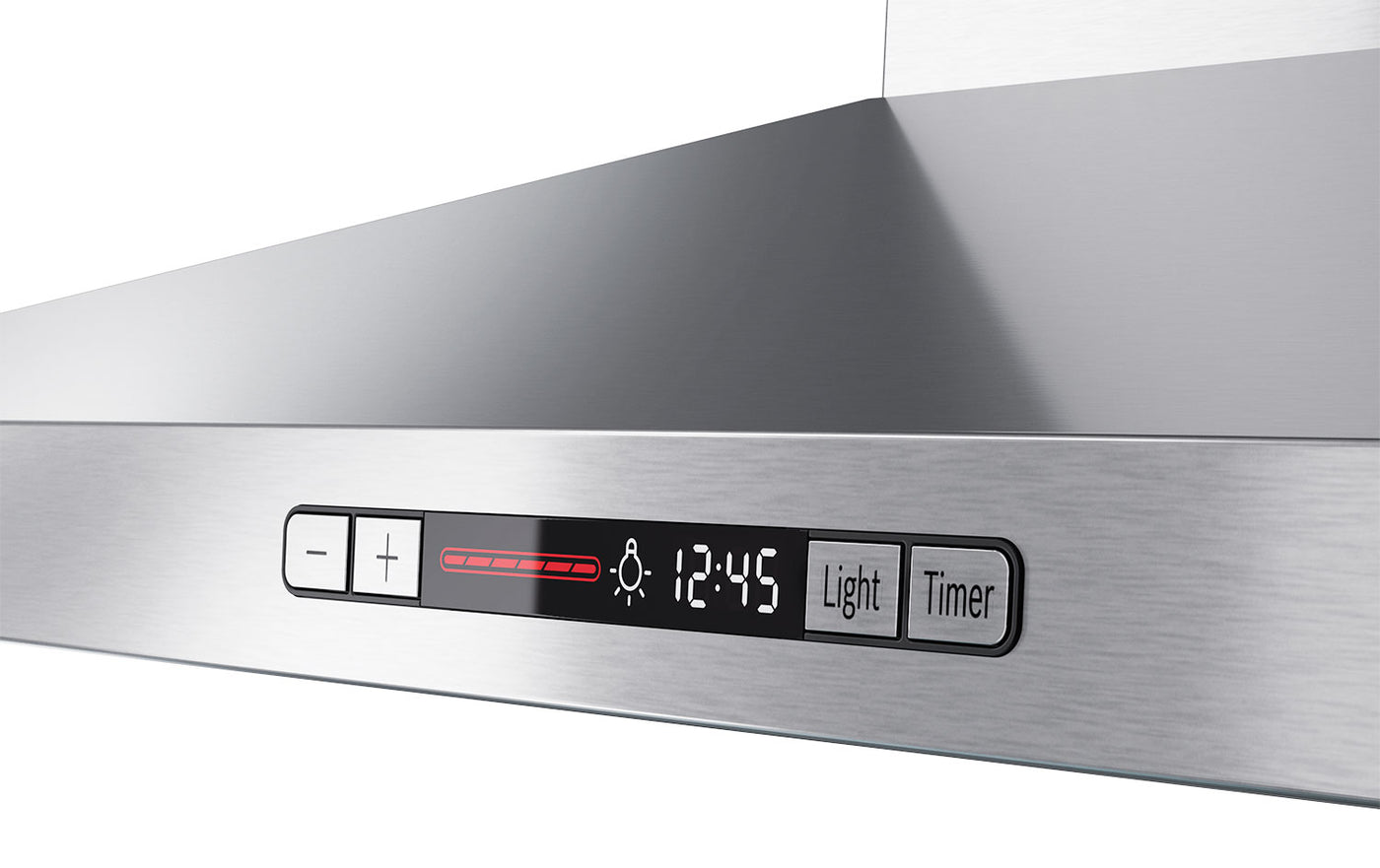

Four-Speed Touch Controls with LCD Display
The LCD display for adjusting the speed of the fan is both easy to use and attractively modern.

Dishwasher-Safe Aluminum Mesh Filters
The aluminum mesh filters are dishwasher-safe, ensuring your chimney hood can easily be cleaned and maintained for increased efficiency.

Full Features and Specifications

General Properties:

  • Operating mode: Convertible: ducted / recirculating
  • Maximum CFM: 600 CFM
  • Sones: 10.13 HS / 2.46 WS
  • Number of speed settings: 4-stage
  • Motor location: Integrated motor in hood chimney
  • Number of lights: 2
  • Bulb type: Halogen
  • Total power of the lamps (W): 80 W
  • Damper included: Yes
  • Grease filter material: Washable stainless steel
  • Grease filter type: Multi-layer cassette

Technical Details:

  • Volts (V): 120 V
  • Frequency (Hz): 60 Hz
  • Plug type: No plug


  • Height of the chimney: 25.88" x 40.82" / 25.88" x 44.75"
  • Required distance above cooktop/range cooking surface: 24" Electric / 30" Gas
  • Diameter of air duct top: 8"

Shipping Depth: 17.99

Shipping Height: 26.37

Shipping Width: 40.49

Finish: Stainless Steel
