Dishwasher Installation

Installation includes
  1. Review installation with customer at start of work.
  2. Remove packaging and inspect unit.
  3. Prepare appropriate drilling if side-mounting is necessary and possible.
  4. Install of the new dishwasher into opening and hook up to existing plumbing and electrical.
  5. Ensure dishwasher is properly grounded.
  6. Test to ensure proper operation.
If dishwasher exist:
  1. Disconnect existing dishwasher.
  2. Supply and install of new dishwasher supply line.
For new dishwasher:
  1. Install shut off valve, supply line and any other minor plumbing and electrical as required up to existing branch wiring and plumbing.
Installation does not include
  1. Disposal of old unit and packaging unless haul away via installer has been purchased.
  2. Supply and install of a new shut off valve if dishwasher exist.
  3. Routing water and drain lines through adjacent cabinet(s) other than the sink base.
  4. Pick-up and delivery of the dishwasher unless delivery via installer has been purchased.
  5. Upgrading of electrical services, structural modifications or removal of cabinetry to accommodate new appliances.
  6. Note: Replacement of circuit breakers (requires a licensed electrician).

Whirlpool Top-Control Dishwasher with Boost Cycle - WDP540HAMB

Dimensions: 23.88" w x 34.5" h x 24.5" d
$595.00 Was $949.97
What's included?
Sku: WDP540MB
Wishlist (0)
Maximum quantity available reached.

Stuck on grime is no match for this Whirlpool dishwasher. Featuring Boost and Heavy cycles specially designed to blast through grease and thoroughly soiled dinnerware, this appliance provides you with clean dishes after even the messiest meals. Make use of three cup shelves on the upper rack to get more washed at once without taking up extra space. Plus, take advantage of the Quick Cycle, which will have your plates and glasses ready for dinner guests in a flash.

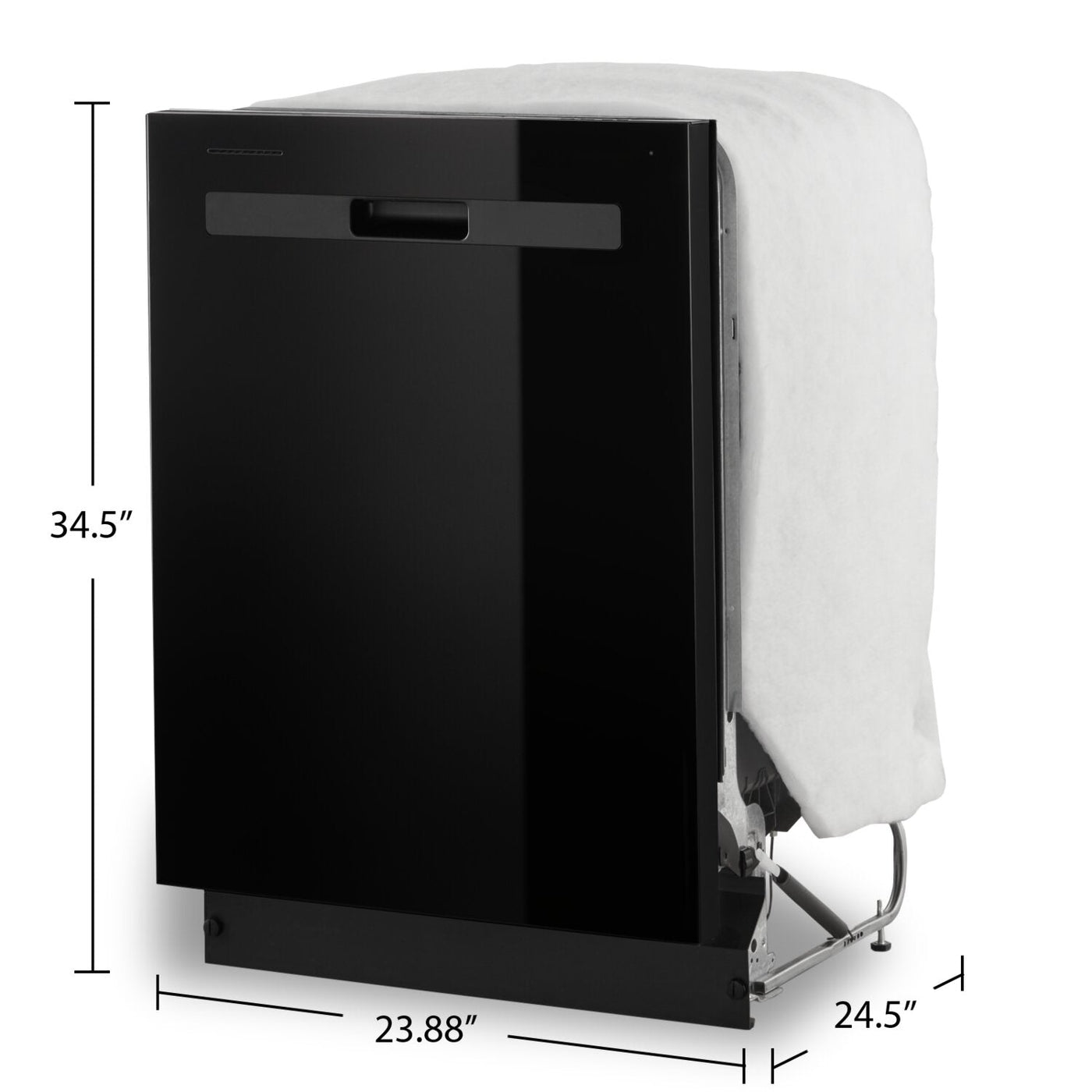

Product Dimensions: Width:23.88" Height:34.5" Depth:24.5"

Unique Features:

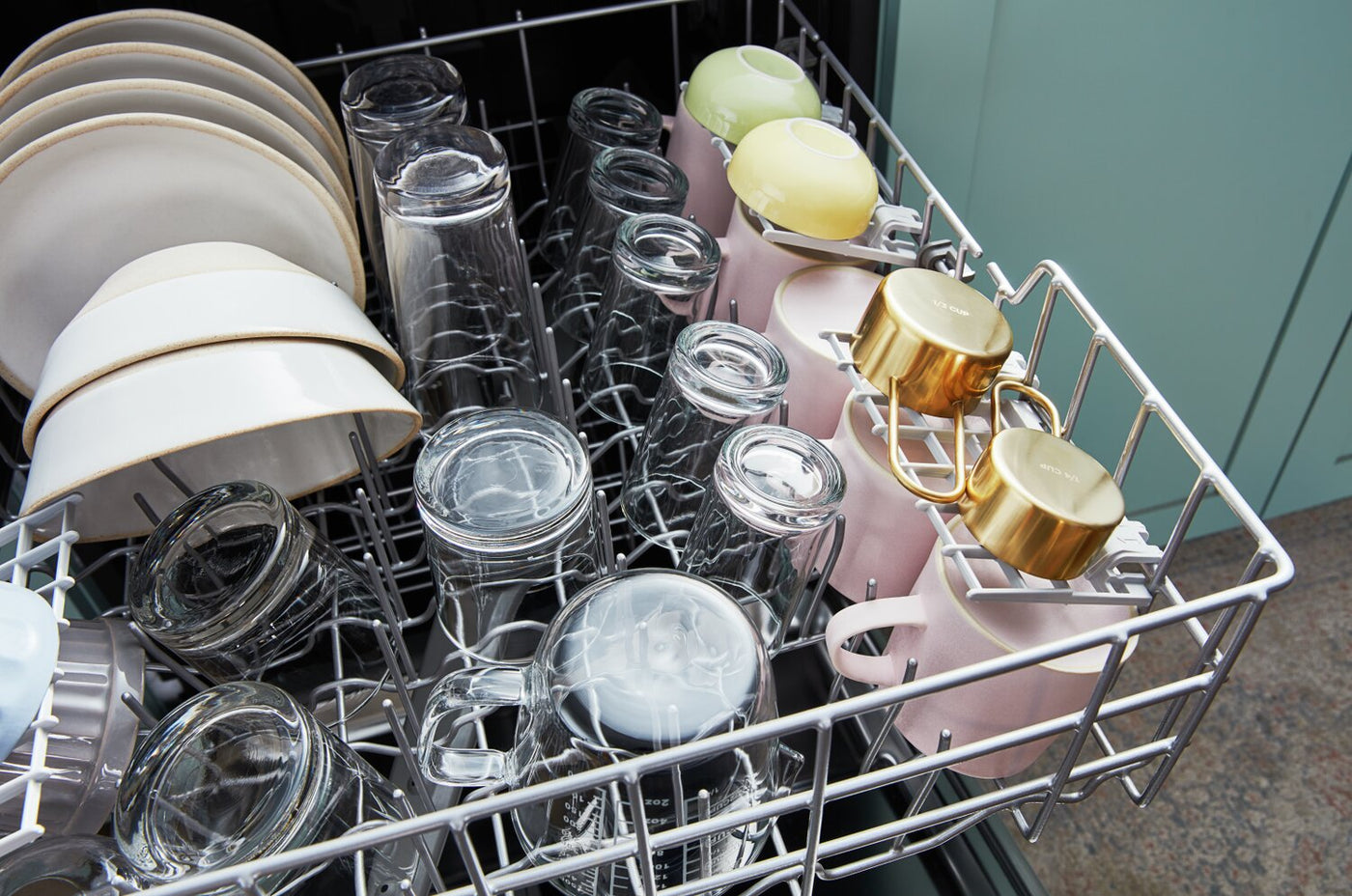

Three Cup Shelves:
Three five-inch Cup Shelves fit six additional cups or small bowls to free up extra space in the racks below, and conveniently fold down to stay out of the way when not in use.

Extended Soak Cycle:
Pre-soak and wash in one cycle to help stuck-on food dissolve away without any extra steps.

Triple Filtration Wash System:
A Triple Filtration wash system uses a coarse filter to catch large soils, a fine filter to catch medium soils and a micro-fine filter to catch small soils between wash stages.

Boost Cycle:
This cycle uses more water, time and heat than the Normal Cycle while taking less time than the Heavy Cycle, so you can target tough messes that need a little extra effort.

Sani-Rinse:
Hotter water kills 99.999% of food soil bacteria, so you know your dishware is as clean as can be.

Heated Dry Option:
Added heat for drying allows you to use a clean, dry dish straight from the dishwasher.

Cycle Memory:
Cycle Memory automatically remembers the last cycle you picked, keeping it stored and ready to go with just one button.

ENERGY STAR® Certified:
This appliance reduces power consumption without compromising on cleaning performance.

Certification: Energy Star Certified, NSF® Certified, UL

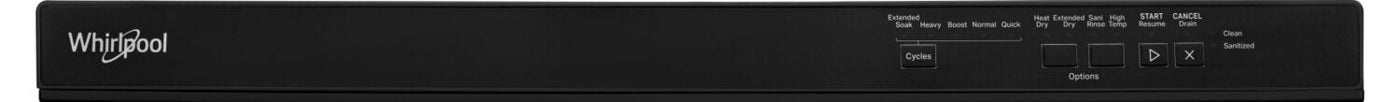

Controls: Electronic Touch

Dishwasher Capacity: 12 Place Settings Cu. Ft.

Dishwashers Type: Built-In

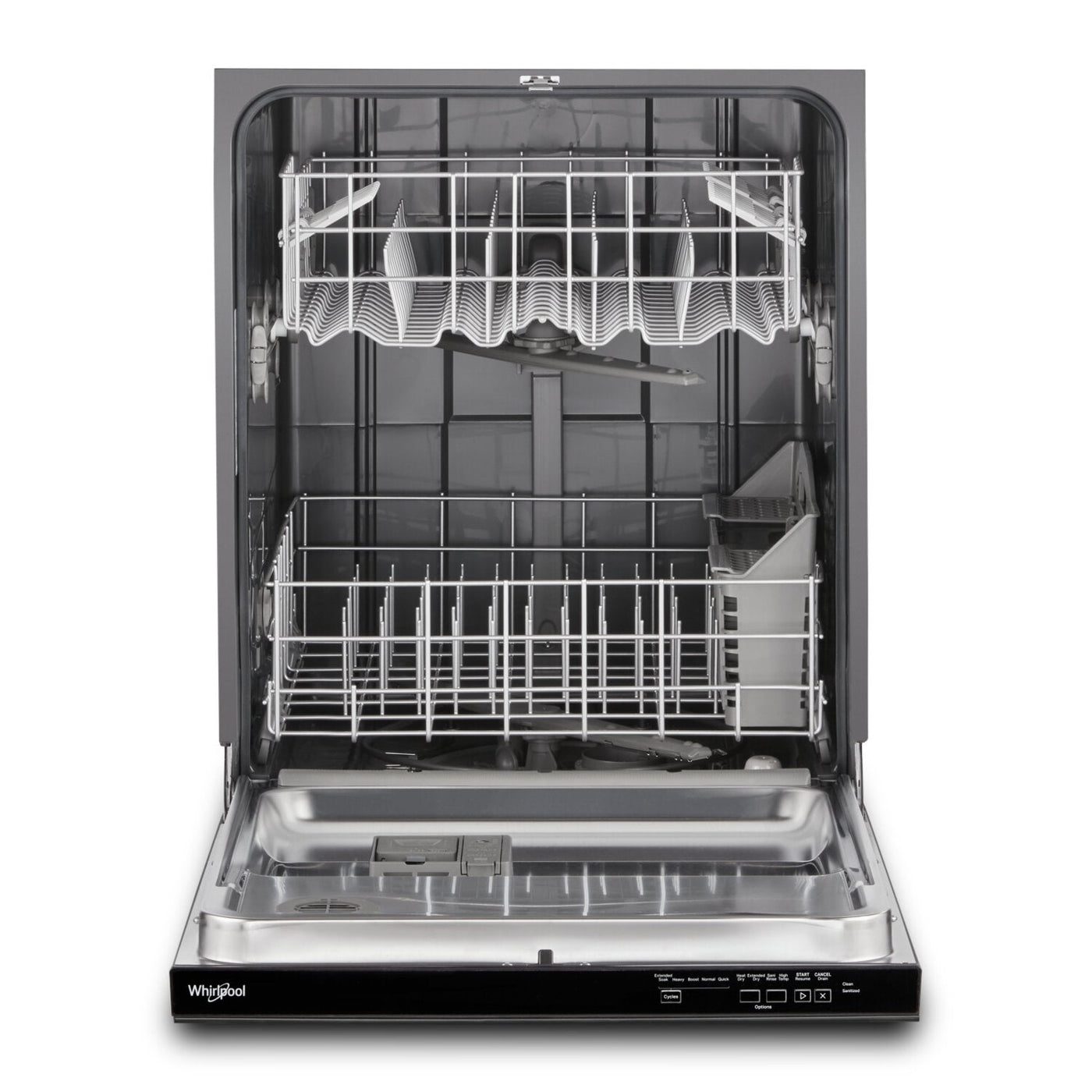

Racks: Upper Rack, Lower Rack

Silverware Basket: Yes

Tub Type: 24" Built-In Tall Tub

Wash Cycles: Boost, Heavy, Normal, Quick Wash

Wash Options: Extended Dry, Extended Soak, Heated Dry, Hi Temp Wash, Sani Rinse®

Wash System: Removable Filter

Appliance Features: Sanitize, Top Control

Care Instructions: Please refer to your Owner's Manual

Depth Door Open: 49.5"

Energy Consumption: 270 kWh/year

Finish: Black

Safety: Overfill Detect: A float sensor inside the dishwasher will detect if too much water is in the tub and cut the power to the inlet fill valve to help prevent overfilling.

Additional Details: Sound Package: Quiet Pack™
