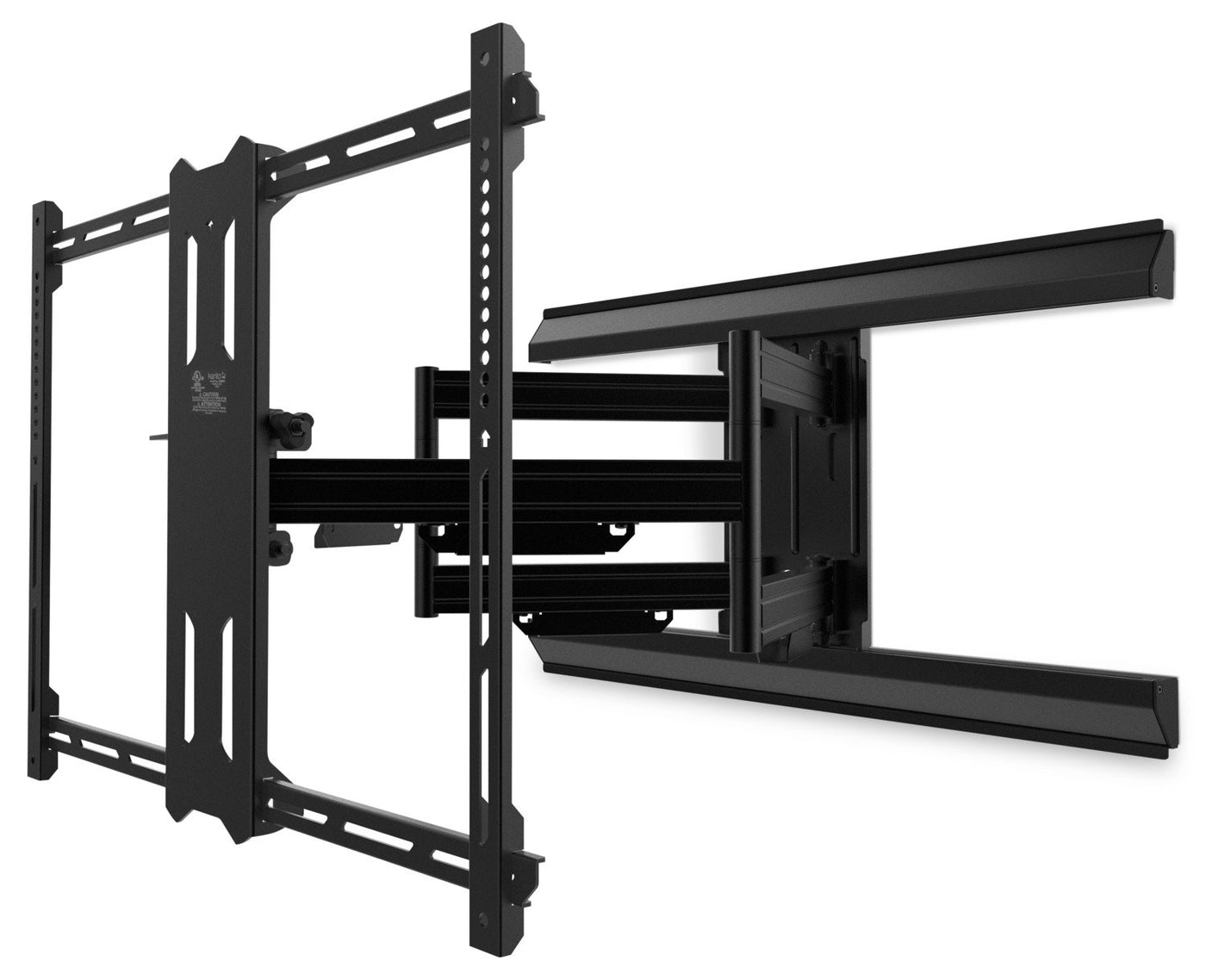

Kanto PMX700 Pro Series Full Motion Mount for 42" to 100" TVs

Dimensions: 32.4" w x 21.1" h x 31.3" d
$249.95 Was $349.99
Sku: PMX700FM
Wishlist (0)
Maximum quantity available reached.
Don’t let the size of your TV dictate where you put it. Capable of supporting TVs up to 100 inches, the Kanto PMX700 features two articulating arms that can be horizontally offset to give you the utmost discretion over where your TV is placed. With 31.3 inches of extension, this full motion wall mount provides enough tilt and swivel movement to ensure you always have the perfect viewing angle. Its low profile design allows your TV to sit 2.6 inches from the wall when fully retracted and features cord management clips to keep your cables out of sight.

Product Dimensions: Width:32.4" Height:21.1" Depth:31.3"

Key Features:

  • Supports up to 150 Pounds
  • Extendable
  • Accessible Tilt Mechanism
  • Adjustable Horizontal Levelling
  • Installation Ready

Supports up to 150 Pounds
This mount fits most flat panel TVs from 42 to 100 inches, capable of supporting TVs up to 150 pounds (68 kilograms).

Extend this mount up to 31.3 inches (79.5 centimetres) from the wall, sitting 2.6 inches (6.6 centimetres) when fully retracted, while also accommodating 24-inch stud spacing.

Accessible Tilt Mechanism
Accessible tilt mechanism provides +12° to -3° of tilt, 90 degrees of swivel in either direction, depending on screen size.

Adjustable Horizontal Levelling
With ±11" (27.9 cm) of horizontal offset, adjustable horizontal leveling and cULus certification, you get to see your screen the way you want it.

Installation Ready
The installation manual and all mounting hardware for wood studs and concrete installation is included.

Full Features and Specifications:

  • TV Size: Fits most flat panel TVs from 42" to 100"
  • Load Rated: Supports TVs up to 150 lb. (68 kg)
  • VESA: Accommodates VESA sizes from 200x100 to 700x500
  • Stud Spacing: 32.4" (82.3 cm) dual stud wall plate accommodates up to 24" stud spacing
  • Tilt: Accessible tilt mechanism provides +12° to -3° of tilt
  • Swivel: 90 degrees of swivel in either direction, depending on screen size.
  • Extension: Extends up to 31.3" (79.5 cm) from the wall
  • Profile: Sits 2.6" (6.6 cm) from the wall when fully retracted
  • Levelling: Adjustable horizontal leveling
  • Horizontal Offset: ±11" (27.9 cm) of horizontal offset
  • Height Adjustment: N/A
  • Lock: N/A
  • Pull Cords: N/A
  • Construction: Solid steel construction with durable powder-coated finish
  • Cable Management: Integrated cable management
  • Assembly Required: Yes
  • Product Weight: 46.9 lb. (21.3 kg)
  • Box Contents: Mount, hardware, manual, punched cardboard template

Shipping Depth: 20.9

Shipping Height: 4.8

Shipping Width: 40

Finish: Black
