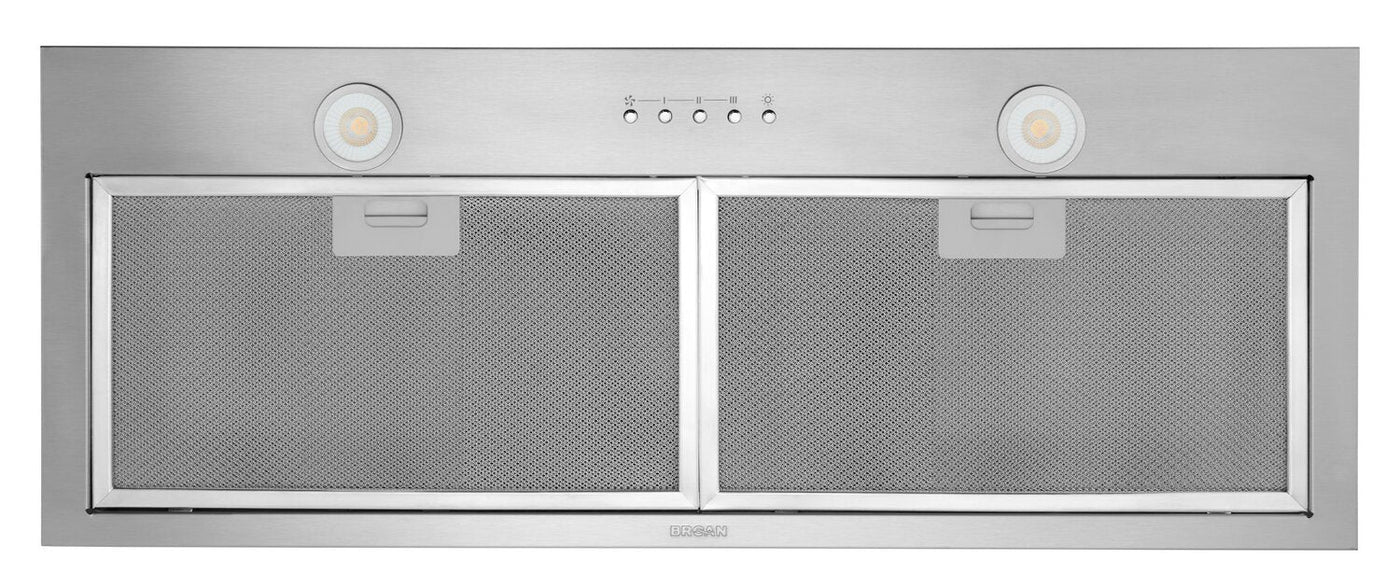

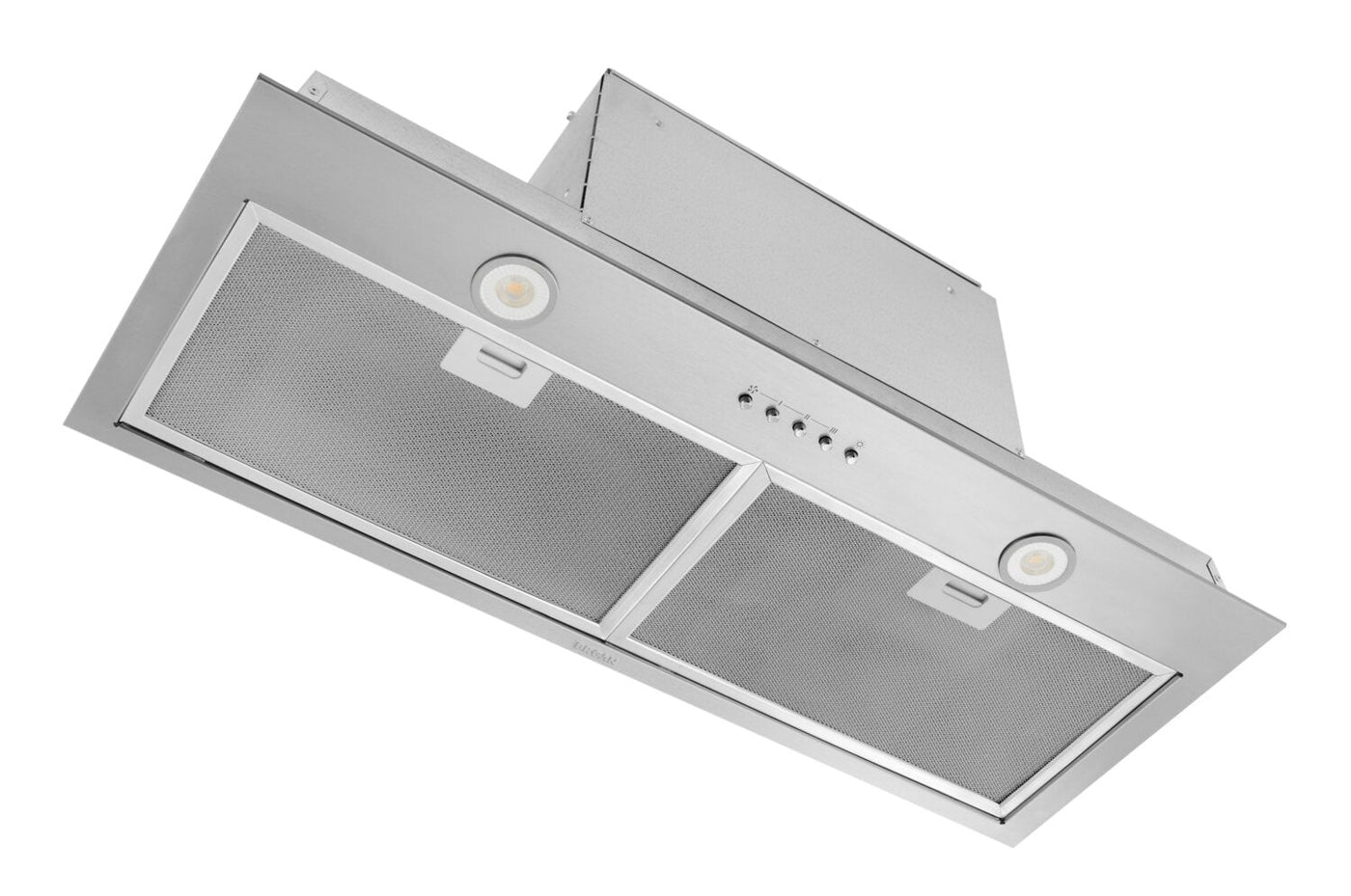

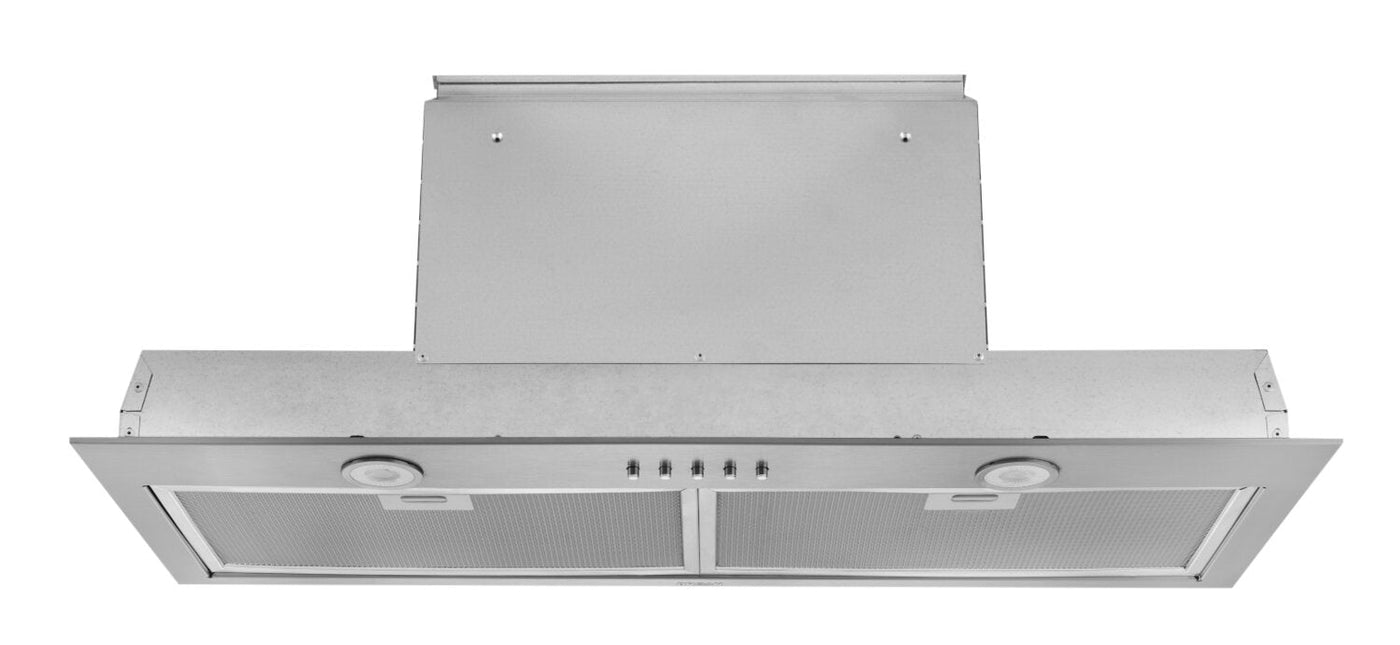

Broan 24" Built-In Power Pack Insert - BBN2243SS

Dimensions: 23.875" w x 10.562" h x 11.437" d
$449.00 Was $579.97
Sku: BBN2243S
Wishlist (0)
Maximum quantity available reached.

Keep your smoke alarm silent with this power pack insert from Broan. With 350 cubic feet per minute (CFM) of venting power and three fan speeds to choose from, smoke and odours are easily cleared away. Plus, Heat Sentry™ automatically sets the speed to high when excessive heat is detected to take the guesswork out of your cooking experience. This insert fits into the underside of your cabinet for a flush appearance, while the smooth stainless steel finish and dishwasher-safe filters make it easy to keep clean.

Product Dimensions: Width:23.875" Height:10.562" Depth:11.437"

Other Dimensions: Duct Outlet Size: 6" Round, 3.25" x 10" Horizontal / Vertical

Unique Features:

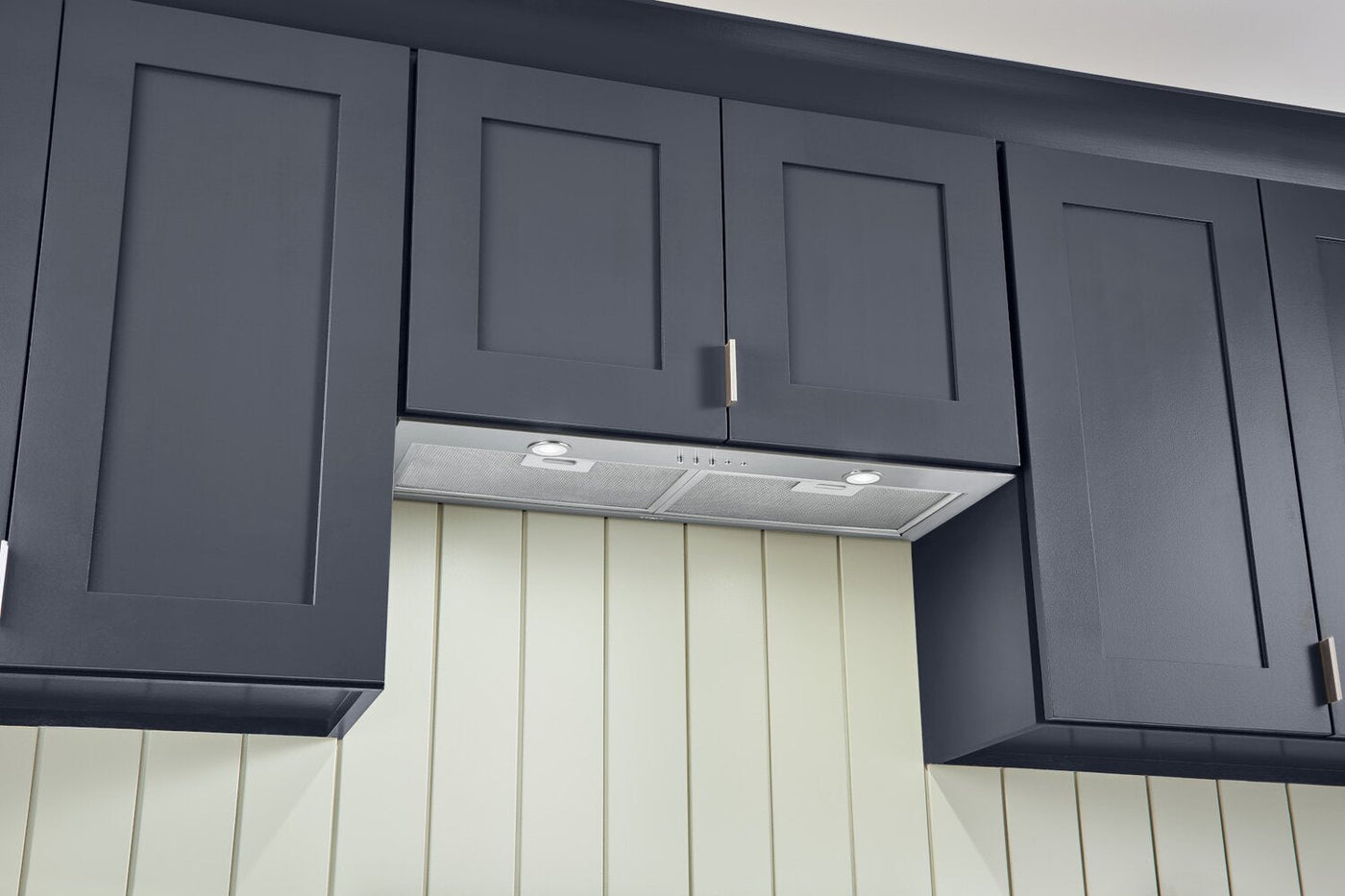

Clean Style:
The integrated, one-piece design of this insert protects the full underside of your cabinetry with a flush appearance and depth adjustability.

Efficient Blower:
With a max blower speed of 350 CFM, three fan levels and a volume of only 1 sone at normal operation, this insert can clear your kitchen air without interrupting your family’s conversations.

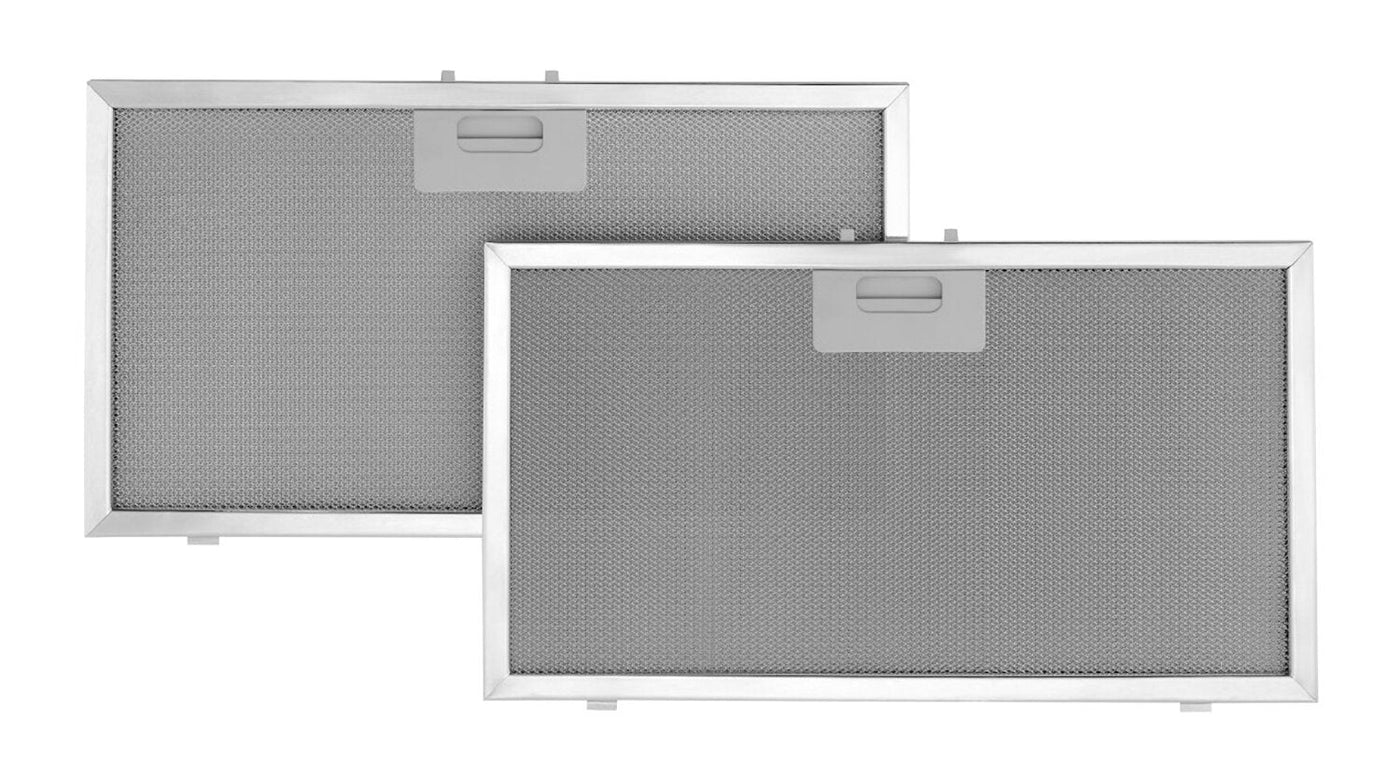

Dishwasher-Safe Filters:
Keep these grease-capturing filters at the top of their game by simply placing them in the dishwasher for a thorough cleaning.

One-Level Lights:
Bright LED lighting evenly illuminates your cooktop and is tested in cooking environments to ensure a long life without dimming.

Heat-Sensing Technology:
Heat Sentry detects excessive heat and adjusts the blower speed to high automatically to keep your environment safe.

Multiple Ducting Options:
Installing this hood is much easier thanks to three ducting options – a 3.25 by 10-inch horizontal or vertical and six-inch round vertical option are possible with the included adapters.

Adjustable Design:
The included liner extension accommodates cabinets up to 13 inches deep, while larger extensions are available (sold separately) to fit cabinets up to 15 inches deep.

Controls: 3-Speed Push Buttons

Exhaust Power: 350 CFM

Filtration Type: Aluminum Mesh Filters

Install Requirements: Leave 24 to 30 inches between cooktop and bottom of hood.

Lighting: 1-Level LED

Ventilation Type: Vertical, Horizontal, Recirculating

Certification: HVI Certified, UL Listed, ADA Compliant, ENERGY STAR® Certified

Care Instructions: Please refer to your Owner's Manual

Finish: Stainless Steel

Included In Box: 2 LED Modules, EZ1 Installation Clips

Sold Separately:

  • Replacement Grease Filters: S99010400-124
  • Charcoal Filters for Non-Ducted Installation: S99010464-124
  • 15" Liner Extensions (Set of 4): HADTBN24
  • Non-Ducted Installation Kit: HARKBN24
  • Hybrid Baffle Filters: HPFBN24

Additional Details: Volume (Sones) by Ducting Type:

  • Vertical - Rectangular: Normal: 1 / Medium: 2 / High: 3.5
  • Horizontal - Rectangular: Normal: 1 / Medium: 1.5 / High: 3.5
  • Round - Vertical: Normal: 1 / Medium: 2 / High: 4

Please note that the actual colour may vary slightly from the colours shown on the screen due to different device monitors.
