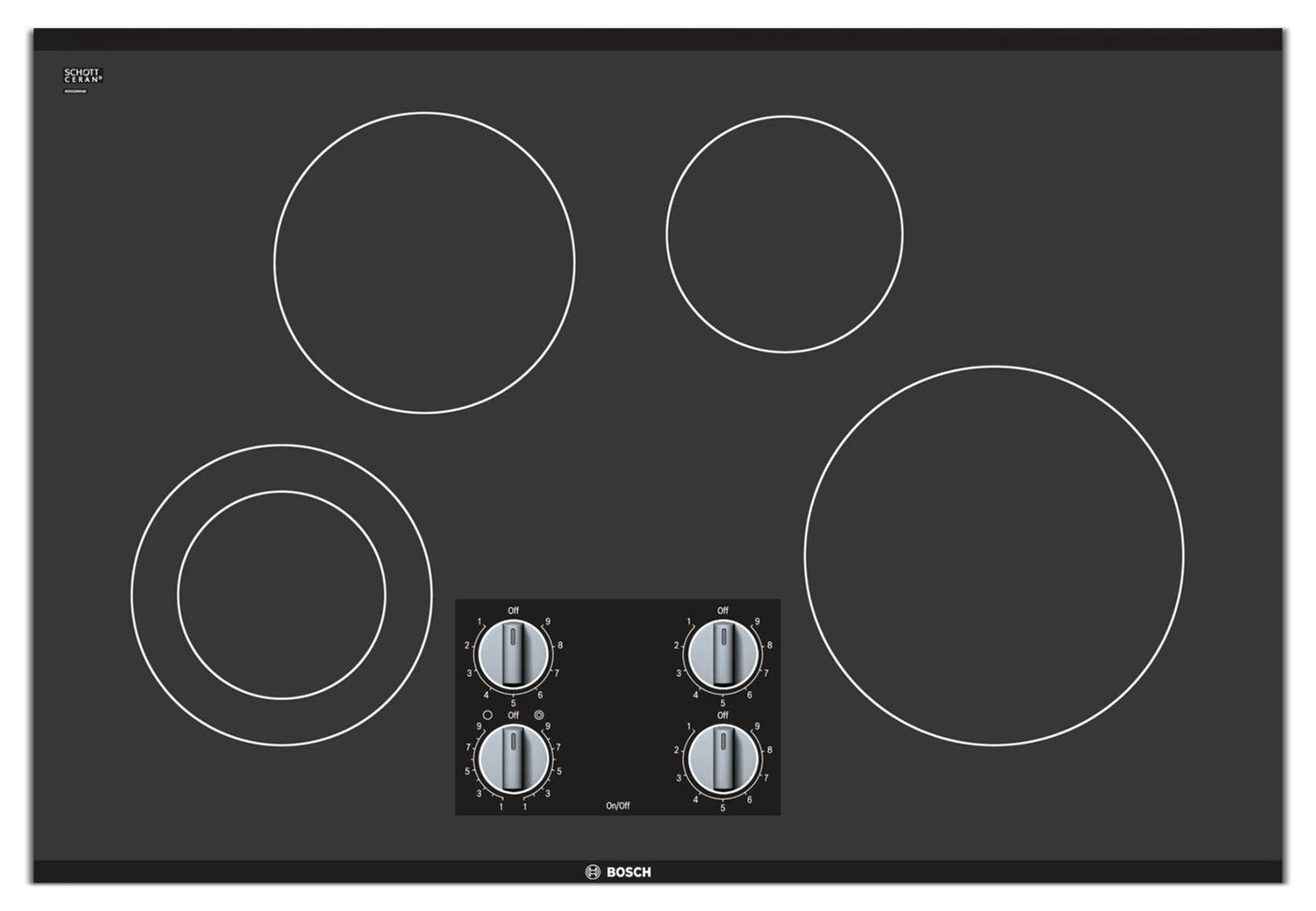

Bosch 500 Series 30" 4-Burner Electric Cooktop - NEM5066UC

Dimensions: 31" w x 4.25" h x 21.25" d
$1,649.00 Was $1,849.97
Sku: NEM5066UC
Wishlist (0)
Maximum quantity available reached.
Feel like a pro when you use this Bosch 500 series electric cooktop. With four burners, you can cook everything you need at once without waiting for space on the cooktop. A dual burner allows you to customize the size of your element to a small pan or a large pot, while the powerful 2,500-watt burner boils water in a flash. Created with a seamless design, this sleek cooktop enhances the modern look of your kitchen.

Product Dimensions: Width:31" Height:4.25" Depth:21.25"

Key Features:

  • Dual Element
  • Powerful 2,500-Watt Burner
  • Two-Level Heat Indicator
  • Seamless Design

Dual Element
Customized to the size of your cookware, the dual element helps you save energy with a focused area for a small pot or pan, and an enlarged area for a bigger pot or pan.

Powerful 2,500-Watt Burner
Boil water quickly with the powerful, front-right 2,500-watt burner.

Two-Level Heat Indicator
Whether the cooktop is hot or just simply warm, the heat indicator notifies you to prevent harmful burns.

Seamless Design
Enjoy a sleek and modern look in your kitchen with the cooktop's seamless design.

Full Features and Specifications

General Properties:

  • Knob Material: Plastic

Burner/Element Performance:

  • Total Number of Cooktop Burners: 4
  • Location of First Heating Element: Front Left
  • Power of First Heating Element: 0.7 kW, 1.7 kW
  • Dimension of First Heating Element: 5", 7"
  • Location of Second Heating Element: Back Left
  • Power of Second Heating Element: 1.8 kW
  • Dimension of Second Heating Element: 7"
  • Location of Third Heating Element: Back Right
  • Power of Third Heating Element: 1.2 kW
  • Dimension of Third Heating Element: 6"
  • Location of Fourth Heating Element: Front Right
  • Power of Fourth Heating Element: 2.5 kW
  • Dimension of Fourth Heating Element: 9"
  • Sealed Burners: No


  • Approval Certifications: CSA

Installation Requirements:

  • Watts: 9,000
  • Current: 40/40 A
  • Volts: 240/208
  • Frequency: 60 Hz
  • Plug Type: No Plug
  • Energy Source: Electric

Additional Dimensions:

  • Required Cut-Out Size: 34.88" W x 4" H x 20" D
  • Minimum Distance from Counter Front: 2.25"
  • Minimum Distance from Rear Wall: 2"

Cooking Features: Smooth Top

Shipping Depth: 24

Shipping Height: 7.88

Shipping Width: 37.88

Finish: Black
